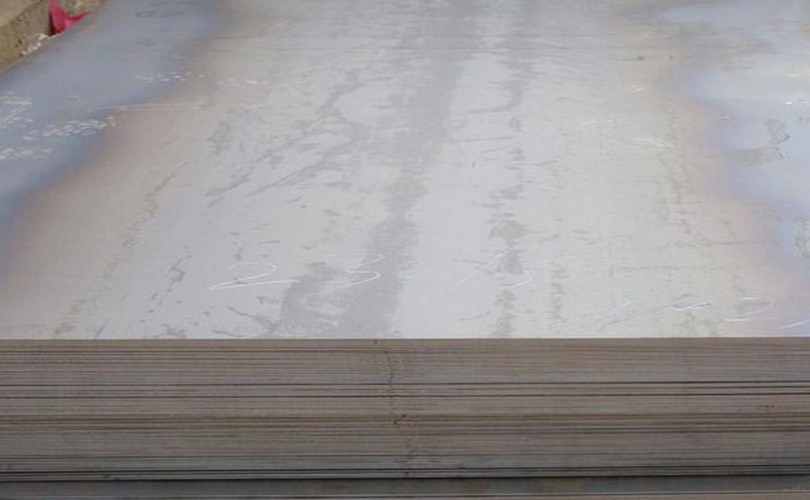

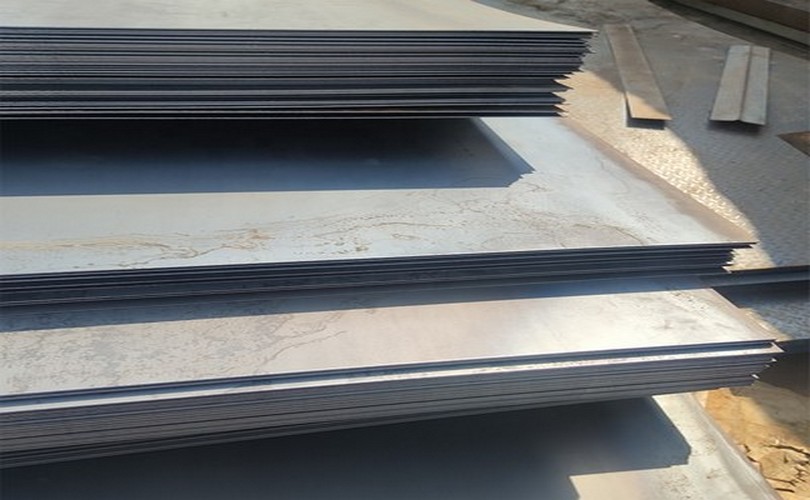

ASTM A36 Steel Plate is one of the most common grades of steel used in structural applications. This mild carbon steel grade contains chemical alloys that give it properties such as machinability, ductility, and strength that are ideal for use in constructing a variety of structures.
ASTM A36 steel plate is the most widely used hot-rolled steel product. As a kind of carbon structural steel product, its relative products are round rod steel, angle bar, and steel sections such as I-Beams, H-beams, angles, and channels. Hot rolled ASTM A36 has rough surface on the final product, it’s easy for further processing like machining.
ASTM A36 steel can be manufactured into various structural steel parts, it is vastly used in many different industries for a variety of applications, why choose ASTM A36? It provide good mechanical property and cost less. For example, it is also used in many bridge construction. Buildings are frequently constructed with A36 steel because of its high strength and toughness. Further more, ASTM A36 steel is also used in fields of automotive, construction, heavy equipment, and oil and gas industries.
ASTM A36 Hot Rolled Steel Plate | Chemical Compostion | |
|---|---|---|
| Element | content | |
| Carbon, C | 0.25 - 0.290 % | |
| Copper, Cu | 0.20 % | |
| Iron, Fe | 98.0 % | |
| Manganese, Mn | 1.03 % | |
| Phosphorous, P | 0.040 % | |
| Silicon, Si | 0.280 % | |
| Sulfur, S | 0.050 % | |
| Physical Property | Metric | Imperial |
|---|---|---|
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
| ASTM A36 Hot Rolled Steel Plate | ||
|---|---|---|
| Mechanical Properties | Metric | Imperial |
| Tensile Strength, Ultimate | 400 - 550 MPa | 58000 - 79800 psi |
| Tensile Strength, Yield | 250 MPa | 36300 psi |
| Elongation at Break (in 200 mm) | 20.0 % | 20.0 % |
| Elongation at Break (in 50 mm) | 23.0 % | 23.0 % |
| Modulus of Elasticity | 200 GPa | 29000 ksi |
| Bulk Modulus (typical for steel) | 140 GPa | 20300 ksi |
| Poissons Ratio | 0.260 | 0.260 |
| Shear Modulus | 79.3 GPa | 11500 ksi |
